BASWA Acoustic Systems
BASWA Phon Fine ( Single Coat System )
by BASWA acoustic®

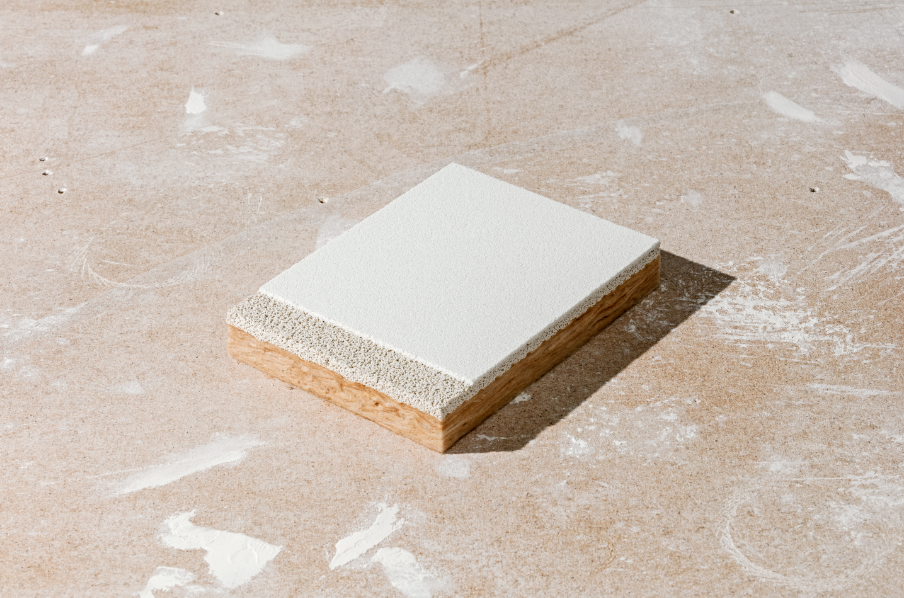

The system comprises a Factory Coated & Sanded Supporting Panel made of mineral fiber which is adhered onto a stable substrate, such as drywall and is then seamlessly coated with a micro-porous marble coating of BASWA Fine.
BASWA Phon Fine : Single-coat system
Single-coat system
System thickness: 30 / 40 / 50 / 70 mm
Fine surface structure
Sound absorption class: B (up to αw 0.85)
Grain size of final layer: 0.5 mm
Non-combustible (A2-s1, d0) according to DIN EN 13501-1
Standard color ~ NCS S 0500-N
Unlimited choice of colors
Very short installation time

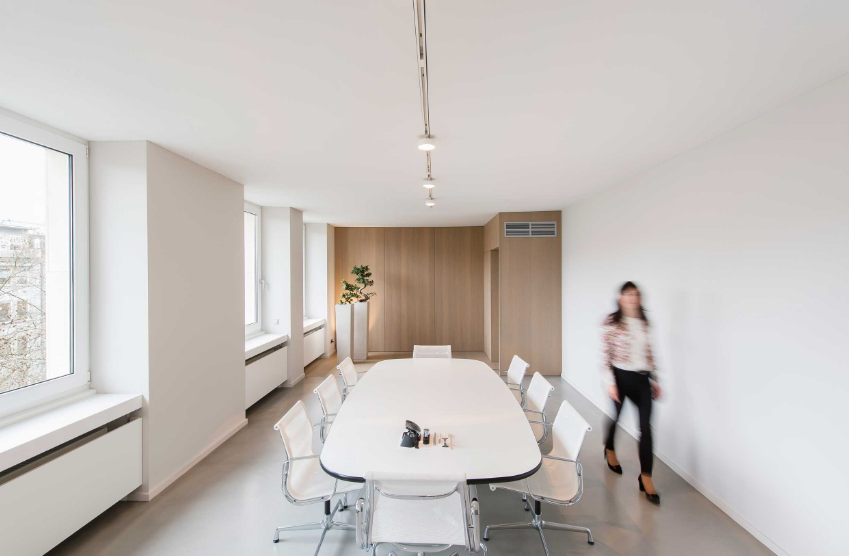

Application of Baswa Phon Fine in the Tschon notary's office in Cologne
Application of Baswa Phon Fine in the Tschon notary's office in Cologne
Quality of system:
Produced in Switzerland, proven over 30 years and used in some of the most prestigious buildings in the world
All components are porosity matched to maintain long term appearance over the entire surface
Airtight system to prevent the latent appearance of panel joints and the localized collection of dust
Full maintenance, renovation and repair concept, including stain removal and mist coat renovation
Huge range of specialist accessories for design flexibility and quality
Almost unlimited color options with UV stable pigments, plus special finishes including glimmer and concrete effect
Quality of materials:
Trowel smoothed marble surface coating – durable, beautiful and UV stable unlike cellulose or synthetic material
Suitable for sensitive heritage and conservation work as well as contemporary schemes
Specially formulated fiberglass for plastering without compression or sag, not repurposed thermal insulation
Highly sustainable including up to 94% recycled content, heat recovery during manufacturing and very low VOC’s (EPD compliant with EN 15804)
Euroclass A fire performance
Quality of service:
Highly experienced, trained and certified installers
Worldwide expertise and support from the originators and pioneers of seamless acoustic ceilings
Independent, innovative company with a single purpose to improve well being through acoustics
