BASWA Acoustic Systems
BASWA Cool (Two-Layer System )
by BASWA acoustic®
BASWA Cool combines noiseless, draught-free room temperature control with efficient sound absorption. It also replaces conventional heating and cooling systems.

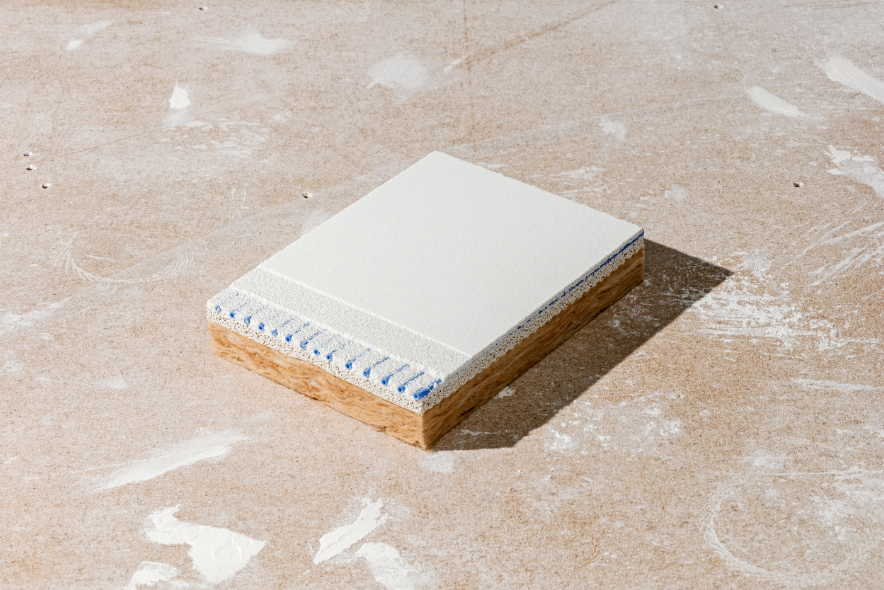

BASWA Cool : Two-layer system
Two-layer system
System thickness: 30 / 40 / 50 / 70 mm
Acoustics combined with heating and cooling
Sound absorption class: C (up to αw 0.65)
Final layer grain size 0.3 / 0.5 / 0.7 mm
Base layer grain size 0.7 mm
Non-combustible ( B-s1-d0 ) according to DIN EN 13501-1
Cooling capacity at Δ8K ; 79.1 W / m2
Heating capacity at Δt = 15 K : 117 W/ m2
Application of Baswa Cool in the premises of Raiffeisenbank Oberriet. Architecture: Carlos Martinez Architekten © Faruk Pinjo
Quality of system:
Produced in Switzerland, proven over 30 years and used in some of the most prestigious buildings in the world
All components are porosity matched to maintain long term appearance over the entire surface
Airtight system to prevent the latent appearance of panel joints and the localized collection of dust
Full maintenance, renovation and repair concept, including stain removal and mist coat renovation
Huge range of specialist accessories for design flexibility and quality
Almost unlimited color options with UV stable pigments, plus special finishes including glimmer and concrete effect
Quality of materials:
Trowel smoothed marble surface coating – durable, beautiful and UV stable unlike cellulose or synthetic material
Suitable for sensitive heritage and conservation work as well as contemporary schemes
Specially formulated fiberglass for plastering without compression or sag, not repurposed thermal insulation
Highly sustainable including up to 94% recycled content, heat recovery during manufacturing and very low VOC’s (EPD compliant with EN 15804)
Euroclass A fire performance
Quality of service:
Highly experienced, trained and certified installers
Worldwide expertise and support from the originators and pioneers of seamless acoustic ceilings
Independent, innovative company with a single purpose to improve well being through acoustics
